CRARRV Build Update

For the serious discussion of RC Tank building and general engineering matters.

Moderator: Moderators

Post Reply
Rob
Posts: 493
Joined: Tue Mar 22, 2005 5:56 pm

Re: CRARRV Build Update

Post by Rob » Sat Dec 06, 2008 3:31 pm

well done Andy, looking good.

User avatar
AndyR
Posts: 869
Joined: Tue Nov 09, 2004 10:37 pm
Location: Aberdeenshire, Scotland, UK

Re: CRARRV Build Update

Post by AndyR » Sat Dec 06, 2008 4:00 pm

Appreciated Rob, Thanks

Cheers
AndyR
Happy, Happy, Joy, Joy, Happy, Happy, Joy, Joy...........

User avatar
007Kiwi
Posts: 1981
Joined: Sat Nov 13, 2004 5:29 am
Location: On Her Majesty's Secret Service
Contact:

Re: CRARRV Build Update

Post by 007Kiwi » Mon Dec 08, 2008 1:42 am

Modern, schmoden, but dude, that looks cool 8-)

Keep it comming

Brett
Battlegroup
South Pacific

:techie-ebay:

User avatar
AndyR
Posts: 869
Joined: Tue Nov 09, 2004 10:37 pm
Location: Aberdeenshire, Scotland, UK

Re: CRARRV Build Update

Post by AndyR » Mon Dec 29, 2008 12:46 pm

Gents,

Couple of pictures of the latest addition:-

An areial mount, this is the isolator:-


This is the Actual rubber mounting point.



This is them assembled.



PS after doing all this I noticed the CRARRV doesn't use his design anymore - argghhhhh!

Cheers
AndyR
Last edited by AndyR on Sun Jul 10, 2011 11:55 pm, edited 1 time in total.
Happy, Happy, Joy, Joy, Happy, Happy, Joy, Joy...........

User avatar
Chieftain 900
Posts: 1355
Joined: Wed Nov 10, 2004 7:48 pm
Location: Back in England
Contact:

Re: CRARRV Build Update

Post by Chieftain 900 » Mon Dec 29, 2008 6:43 pm

Andy

Thats for Clansman, CRARRV now like the rest of the fleet is Bowman. Paint number for ammo box is Humbrol no 10. Is the AE base turned inn RP or is it just the look? You will like the Bowman version as it is a big spring, looking for nice clear shot.
Bob G

Heavy cav rules

http://www.Isallt.com

User avatar
AndyR
Posts: 869
Joined: Tue Nov 09, 2004 10:37 pm
Location: Aberdeenshire, Scotland, UK

Re: CRARRV Build Update

Post by AndyR » Mon Dec 29, 2008 7:36 pm

Ok, thanks bob.

It's made by me on my Cnc milling machine it's made from model board. Lookup Roland Mdx-20 and that's what I have. I bought it a couple of years ago and only just got it out of storage about a month ago the things been running flat out ever since!

Cheers
AndyR
Happy, Happy, Joy, Joy, Happy, Happy, Joy, Joy...........

User avatar
Chieftain 900
Posts: 1355
Joined: Wed Nov 10, 2004 7:48 pm
Location: Back in England
Contact:

Re: CRARRV Build Update

Post by Chieftain 900 » Mon Dec 29, 2008 9:13 pm

Just right for a Chieftain :D :D :D
Bob G

Heavy cav rules

http://www.Isallt.com

User avatar
AndyR
Posts: 869
Joined: Tue Nov 09, 2004 10:37 pm
Location: Aberdeenshire, Scotland, UK

Re: CRARRV Build Update

Post by AndyR » Mon Dec 29, 2008 10:52 pm

Yeah I think you might be right.

Working on the modern version just now, designed today - milled out sometime tomorrow or tomorrow evening!

More photos soon.

Anybody have an economical method of heating a garage, currently have 2x 3kw heaters running at 6hrs a night, this is going to start to hurt?! Space heaters just seem ott and also means teh fumes go into the garage?!

Cheers
AndyR
Happy, Happy, Joy, Joy, Happy, Happy, Joy, Joy...........

User avatar
Chieftain 900
Posts: 1355
Joined: Wed Nov 10, 2004 7:48 pm
Location: Back in England
Contact:

Re: CRARRV Build Update

Post by Chieftain 900 » Mon Dec 29, 2008 11:35 pm

AndyR wrote:Yeah I think you might be right.
Could find them a good home if you like :D



Cheers
AndyR
Bob G

Heavy cav rules

http://www.Isallt.com

User avatar
AndyR
Posts: 869
Joined: Tue Nov 09, 2004 10:37 pm
Location: Aberdeenshire, Scotland, UK

Re: CRARRV Build Update

Post by AndyR » Mon Dec 29, 2008 11:43 pm

Hi Bob, understood, but have promised the masters to someone else. Will maybe make another up later in the week.

:ugeek:

Cheers
Andy
Happy, Happy, Joy, Joy, Happy, Happy, Joy, Joy...........

User avatar
AndyR
Posts: 869
Joined: Tue Nov 09, 2004 10:37 pm
Location: Aberdeenshire, Scotland, UK

Re: CRARRV Build Update

Post by AndyR » Fri Jan 02, 2009 12:40 am

Gents,

Some pictures of my workshop, my CNC milling machine and some pictures showing teh CRARRV.

I designed the grill for the CRARRV side a couple of days ago and depening if my uncle can help me make 6mm thick sheets of modelboard from 25mm sheet of model board then I'll get the side vents done over the next week or so, that would give the model a dramticly good look!!!

Anyway - Happy New Year.

PS I modeled the Bowman antenna, and milled it tonight, but I made an ar*se of it, so will need to redo it tomorrow.......

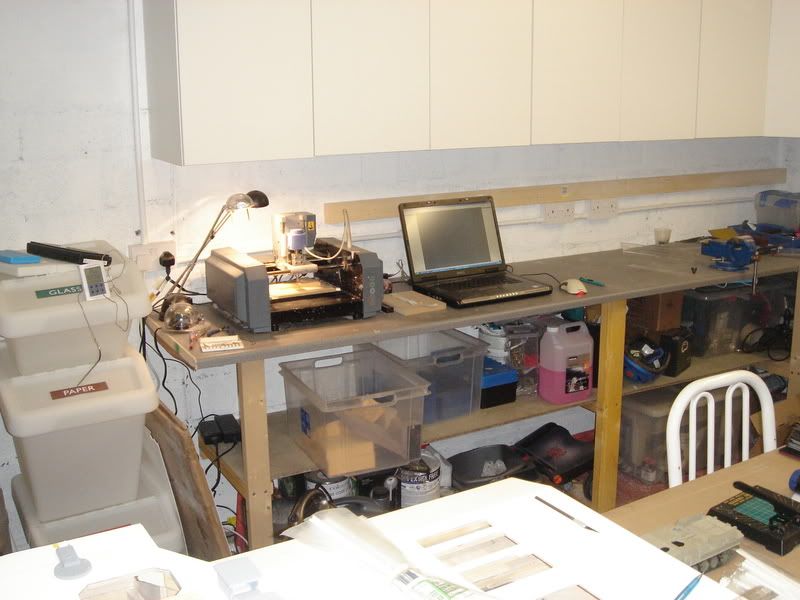

Workshop









Note the ammo box colour is pretty good, tamiya NATO brown seems a pretty good match, I reckon some gloss varnish will give it the shine it needs!

Cheers
AndyR
Last edited by AndyR on Sun Jul 10, 2011 11:55 pm, edited 1 time in total.
Happy, Happy, Joy, Joy, Happy, Happy, Joy, Joy...........

User avatar
Humpy
Forum Administrator
Posts: 3581
Joined: Thu Nov 04, 2004 2:41 pm
Location: SE UK The Garden Of England
Contact:

Re: CRARRV Build Update

Post by Humpy » Fri Jan 02, 2009 10:08 am

Andy,

I like your workshop, makes my pokey little old shed look like, well, a pokey little old shed in comparison! Your workshop looks like it could be a little warmer than my shed as well :( Not good this time of year!

Humpy
UKTC President

Bryan The Bastard-JagdPanther 132, Ermintrude-SdKfz251 133, Thors Hammer Stug IV 135, Arwen 1/4 Panther 136, 137!!, Iveco 75R15 In Service!

Rob
Posts: 493
Joined: Tue Mar 22, 2005 5:56 pm

Re: CRARRV Build Update

Post by Rob » Fri Jan 02, 2009 2:45 pm

:)

User avatar
Colonel_Kramer
Posts: 1355
Joined: Thu Nov 04, 2004 4:58 pm
Location: Schloss¸ Adler - Near Colchester

Re: CRARRV Build Update

Post by Colonel_Kramer » Fri Jan 02, 2009 3:13 pm

Humpy, Howoften do you sit out in the shed. I bet you spend more time in Uckfield. Any my workshop is big enough for 3 tanks, mill, lathe and my Harley. Sweet.
TwoR's -
MAASSCKT-1-TANK Tiger owner
UKTC Official Photographer
M-1-T Official Photographer
Nikon D3 and D2Xs user

User avatar
Humpy
Forum Administrator
Posts: 3581
Joined: Thu Nov 04, 2004 2:41 pm
Location: SE UK The Garden Of England
Contact:

Re: CRARRV Build Update

Post by Humpy » Fri Jan 02, 2009 3:15 pm

Garry,

I'll have you know I was out in my little old shed Christmas morning labouring away with my soldering iron! Even Howard's workshop was flippin' freezing the other day when I dropped in and he had an electric fire going :D I think I'll have to sort out some of the cr*p in my den so I can wire up my panels in comfort!

Humpy
UKTC President

Bryan The Bastard-JagdPanther 132, Ermintrude-SdKfz251 133, Thors Hammer Stug IV 135, Arwen 1/4 Panther 136, 137!!, Iveco 75R15 In Service!
